About XF Fluid BedXF fluid bed system consists of air filter, heater, fluid bed,
feeder, cyclone, bag filter, high pressure centrifuge fan,
operation table and so on. Based on different requirement of
different products, either cyclone or bag filter or both could be
chosen.
Principle of workProducts are fed into fluidized-bed drier through feeder. Fresh air
after filtering and heating is conveyed to the bottom of fluid bed
by fan and contacts with solid raw products on distributing plate,
There fluidizing and heating exchange are conducted between air and
products. Dry products are discharged from outlet to cyclone and
bag filter from the top of fluid bed.
Heat sourceSteam, electricity or hot air furnace can be used.
Applications- pharmaceutical product
- chemical
- food
- pressing tablet
- resin
- citric acid
- maize embryo
- animal food

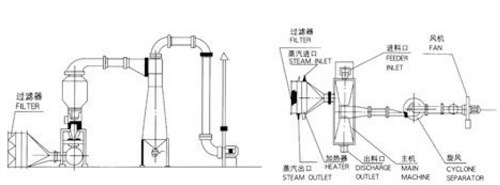

Flow Chart
| Model | Bed Area
(m2) | Fan Power
(kw) | Drying Capacity
(kg/hr) | Product Temp.
(°C) |
| XF-20 | 0.5 | 11 | 20-25 | 40-60 |
| XF-30 | 1.0 | 18.5 | 30-45 | 40-60 |
| XF-50 | 2.0 | 30 | 55-90 | 40-60 |
| XF-150 | 6.0 | 67 | 150-300 | 40-60 |
Note: customized design is available
About Fanqun-Leader of R&D in dryer system in China
-TOP 3 in China for dryer design and manufacture
- 28 years customized capability in dryer system technology
- Export to the US, Germany, Chile, Russia, Poland, Japan, South
Korea, Mexico, Thailand, India, Malaysia,Pakistan, South Africa
etc. over 20 contries in total.
- 368 working staffs, including 15 R&D engineers, 33 mechanical
engineers and 15 electrical engineers.
- 72,000m2 plant area including 20,000m2 office area and 5
workshops
-Famous trademark in Jiangsu Province
- Design&Manufacturing as per EN, NEMA, ASME Chinese standard.
- 12 month warranty upon goods delivery
- Site supervision for installation and commissioning as an option
- Remote diagnose for trouble shooting.
- Certifications: ASME, CE, ISO9001, ISO14001, HSE, NB, Famous
Brand of Jiangsu etc.
