About XSG Spin Flash DryerWet product is agitated in the agitating chamber and blow into the
dryer body and contact with hot air for heat conduction.
Advangages of XSG Spin Flash Dryer- Product contact dirctly with hot air, so the heating efficiency
is high.
- Hot air enters into the dryer from the bottom and strong air flow
forms in the dryer, thus avoid product stuck on the wall.
- Suitable for heat sensitive product
- Short drying time and high product capacity
- Continuous drying
- Heat source could be steam, electricity, natural gas, coal etc.

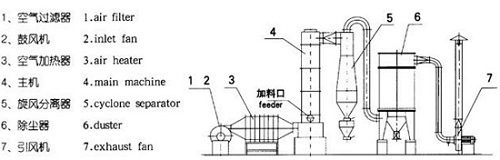

Flow Chart of XSG Flash Dryer
Techncial Parameter| Model | Size of Machine
(mm) | Power of agitation shaft
(KW) | Installed power
(kw) | Remarks |
| XSG-60 | Φ600 x 5300 | 7.5 | 18-33 | |
| XSG-80 | Φ800 x 5800 | 7.5 | 30-40 | |
| XSG-100 | Φ1000 x 6200 | 11 | 45-50 | |
| XSG-120 | Φ1200 x 6500 | 11 | 50-55 | |
| XSG-140 | Φ1400 x 6700 | 15 | 60-70 | |
Customized design is available
About Fanqun-Leader of R&D in dryer system in China
-TOP 3 in China for dryer design and manufacture
- 28 years customized capability in dryer system technology
- Export to the US, Germany, Chile, Russia, Poland, Japan, South
Korea, Mexico, Thailand, India, Malaysia,Pakistan, South Africa
etc. over 20 contries in total.
- 368 working staffs, including 15 R&D engineers, 33 mechanical
engineers and 15 electrical engineers.
- 72,000m2 plant area including 20,000m2 office area and 5
workshops
-Famous trademark in Jiangsu Province
- Design&Manufacturing as per EN, NEMA, ASME Chinese standard.
- 12 month warranty upon goods delivery
- Site supervision for installation and commissioning as an option
- Remote diagnose for trouble shooting.
- Certifications: ASME, CE, ISO9001, ISO14001, HSE, NB, Famous
Brand of Jiangsu etc.
Certifications
ASME CE ISO9001
Famouse Trademark in Jiangsu Province
